Electrolux Professional Washer Extractor ...

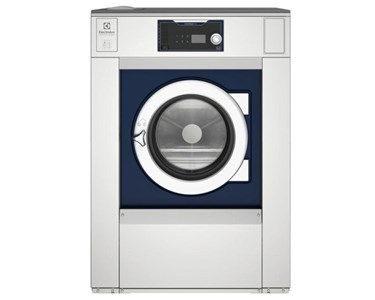

Electrolux Professional - Washer Extractor WH6-14

Supplier: Richard Jay Pty Ltd

Washer Extractor WH6-14

The WH6-14 washer extractor is a high-capacity, professional laundry machine designed for efficiency, hygiene, and ease of use in commercial environments.

Automatically adjusts water and energy use based on linen weight, delivering superior efficiency and savings.

Main Specifications

Rated capacity, filling factor 1:9 (kg)	14
Drum volume (litres)	130
Drum diameter (mm)	650
Extraction speed (rpm)	1113
G-factor	450
Standard heating alternatives	Electricity (13.0 kW), Steam, Non-heated

* Water temperature: 15°C (cold) & 65°C (hot).
Programs with Automatic Savings (AS).

Consumption Data "ECO 60°C"*

Type	Full load (14 kg)	Half load (6.5 kg)
Total time (min)	60 (Electric), 60 (Steam)	54 (Electric), 54 (Steam)
Water consumption (litres)	91 (Steam), 86+5 (Electric)	46 (Steam), 42+4 (Electric)
Energy consumption (kWh – motor/heating/hot water)	0.30/1.75/0.25 (Electric), 0.30 (Steam)	0.30/0.9/0.2 (Electric), 0.30 (Steam)
Steam consumption (kg)	3.0	1.65
Residual moisture (%)	45	46

Features

Ergonomic, certified design with user-centred approach.
Compass Pro®/ClarusVibe microprocessor controls: intuitive program selection, multi-language support, wash program packages for Economy, Performance & Time.
Auto Savings technology adjusts water use to linen weight for energy and resource efficiency.
Power Balance for maximised dewatering and reduced drying time.
Intelligent Dosing and efficient detergent management, compatible with various dosing pump systems.
OnE Laundry connectivity for remote performance and hygiene monitoring.
Global Advanced Hygiene package: up to log 6 (99.9999%) viral and bacterial reduction, validated by RISE (The Research Institute of Sweden).
Front-loaded, colour-coded detergent dispenser for easy and flexible use.
Compatible with booking/payment systems and coin meters.
Floor load at max extraction: 3.1 ± 0.5 kN; Sound power: 78 dB(A) (extraction), 63 dB(A) (wash).
Protection class: IP X4D. Manufactured to ISO 9001 and ISO 14001 standards.

Installation & Connections

Main voltage: 220–480V, single or three-phase, 50/60 Hz (various configurations available).
Drain valve diameter: 75 mm, Draining capacity: 170 litres/minute.
Water valves: DN 20, pressure 200–600 kPa, capacity at 300 kPa: 20 litres/minute.
Steam valve: DN 15, steam pressure 300–600 kPa.
Liquid detergent supplies: 5 connections.
Net weight: 263 kg; Shipping volume: 1.37 m³.
Front and side panels available in silver grey and dark blue.

Options & Accessories

Steel base, hose kits for water/steam, fluff collector.
Insulated glass door (keeps heat in, cool to touch outside).
Integrated Savings for real-time load optimisation and overload protection.

To contact Richard Jay Pty Ltd about Electrolux Professional Washer Extractor WH6-14 use Get a quote.

Main Specifications

Rated capacity, filling factor 1:9 (kg)	14
Drum volume (litres)	130
Drum diameter (mm)	650
Extraction speed (rpm)	1113
G-factor	450
Standard heating alternatives	Electricity (13.0 kW), Steam, Non-heated

* Water temperature: 15°C (cold) & 65°C (hot).
Programs with Automatic Savings (AS).

Consumption Data "ECO 60°C"*

Type	Full load (14 kg)	Half load (6.5 kg)
Total time (min)	60 (Electric), 60 (Steam)	54 (Electric), 54 (Steam)
Water consumption (litres)	91 (Steam), 86+5 (Electric)	46 (Steam), 42+4 (Electric)
Energy consumption (kWh – motor/heating/hot water)	0.30/1.75/0.25 (Electric), 0.30 (Steam)	0.30/0.9/0.2 (Electric), 0.30 (Steam)
Steam consumption (kg)	3.0	1.65
Residual moisture (%)	45	46

Features

Ergonomic, certified design with user-centred approach.
Compass Pro®/ClarusVibe microprocessor controls: intuitive program selection, multi-language support, wash program packages for Economy, Performance & Time.
Auto Savings technology adjusts water use to linen weight for energy and resource efficiency.
Power Balance for maximised dewatering and reduced drying time.
Intelligent Dosing and efficient detergent management, compatible with various dosing pump systems.
OnE Laundry connectivity for remote performance and hygiene monitoring.
Global Advanced Hygiene package: up to log 6 (99.9999%) viral and bacterial reduction, validated by RISE (The Research Institute of Sweden).
Front-loaded, colour-coded detergent dispenser for easy and flexible use.
Compatible with booking/payment systems and coin meters.
Floor load at max extraction: 3.1 ± 0.5 kN; Sound power: 78 dB(A) (extraction), 63 dB(A) (wash).
Protection class: IP X4D. Manufactured to ISO 9001 and ISO 14001 standards.

Installation & Connections

Main voltage: 220–480V, single or three-phase, 50/60 Hz (various configurations available).
Drain valve diameter: 75 mm, Draining capacity: 170 litres/minute.
Water valves: DN 20, pressure 200–600 kPa, capacity at 300 kPa: 20 litres/minute.
Steam valve: DN 15, steam pressure 300–600 kPa.
Liquid detergent supplies: 5 connections.
Net weight: 263 kg; Shipping volume: 1.37 m³.
Front and side panels available in silver grey and dark blue.

Options & Accessories

Steel base, hose kits for water/steam, fluff collector.
Insulated glass door (keeps heat in, cool to touch outside).
Integrated Savings for real-time load optimisation and overload protection.

Read less...

To contact Richard Jay Pty Ltd about Electrolux Professional Washer Extractor WH6-14 use Get a quote.
