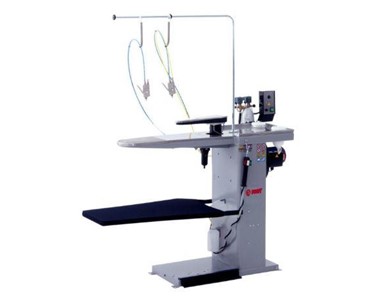

Spotting Table Stain Removal Equipment JOLLY Series

Supplier: Richard Jay Pty Ltd

The JOLLY Series Spotting Tables are professional cold and steam stain removal tables, ideal for dry cleaners and garment manufacturing industries to efficiently treat every kind of stain.

Professional cold and steam stain removal with efficient vacuum drying for fast, residue-free results.

The JOLLY range consists of professional cold and steam spotting tables, as well as a portable mini-spotting unit, designed for stain removal in both dry-cleaning shops and garment production lines. With robust stainless steel construction, these units handle stains from everyday wear or production processes.

Main Models

JOLLY (Cold Spotting Table): Stainless steel work surface and sleeve arm; two independent spotting guns with solution tanks; air filter and cooling coil; air drying gun; built-in or central vacuum connection. Options include suction hood, built-in compressor, and steam/air gun assembly.
JOLLY/S (Steam Spotting Table): Stainless steel work surface and sleeve arm; supports dry, wet, or steam-water mix application; concentrated vacuum for fast drying via heated compressed air gun; available with built-in/central vacuum. Options include water spray gun with condenser, plus a cold spotting gun with product tank.
MR. KLEEN (Portable Spotting Unit): Stainless steel table; cold spotting gun with product tank; air drying gun; built-in vacuum operated by pedal; liquid separation tank; air filter. Options include mobile trolley and kit for second spotting gun.

Key Features

Professional cold and steam stain removal.
Durable stainless steel work surfaces and arms.
Independent circuits for cleaning solutions.
Versatile application (dry, wet, steam-water mix).
Efficient, focused vacuum drying prevents ring marks.
Multiple voltage options available on request.
Available accessories for enhanced performance.

* Other voltages available on request. Specifications are indicative and may change for manufacturing reasons.

Technical Specifications

Model	JOLLY	JOLLY/S	MR. KLEEN
Power Supply	230V/1ph/50Hz or 400V/3+N/50Hz, 220V/3/60Hz, 110V/1/60Hz	230V/1ph/50Hz, 110V/1/60Hz	230V/1ph/50Hz, 110V/1/60Hz
Vacuum Motor	0.25 kW	0.25 kW	0.1 kW
Compressor Motor	1.5 kW	-	-
Air Inlet	1/4”	1/4”	1/4”
Air Consumption	150–200 NL/min	150–200 NL/min	230 NL/min
Air Pressure	7.5–9 bar	8–10 bar	8–10 bar
Steam Inlet/Consumption	3/8”, 3–5 kg/h	1/2”, 6–8 kg/h	-
Vacuum Outlet	Ø100 mm	Ø100 mm	Ø90 mm
Dimensions (mm)	1440 x 700	1440 x 700	750 x 270
Net Weight	50 kg	65 kg	11 kg
Gross Weight	70 kg	85 kg	12 kg
Packing Dimensions (mm)	1380 x 580 x 1100	1380 x 580 x 1070	720 x 290 x 330
Volume (m³)	0.88	0.88	0.07

Available Accessories

Suction hood (external exhaust or activated carbon filter)
Built-in compressor
Steam and air gun assembly
Water spray gun with condenser
Cold spotting gun with product tank
Mobile support trolley (for portable model)
Second spotting gun kit

To contact Richard Jay Pty Ltd about Spotting Table Stain Removal Equipment JOLLY Series use Get a quote.
