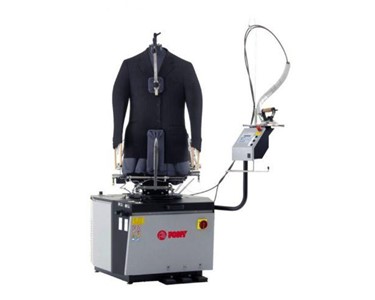

The FORMPLUS form finisher is engineered to deliver high-quality finishing of garments cleaned using wet or dry cleaning processes, ensuring fabric revitalisation and perfectly tensioned seams.

Delivers high-quality garment finishing with automated tensioning, suitable for both wet and dry cleaning processes.

The FORMPLUS garment tensioning form finisher is purpose-built for professional pressing of garments washed with wet cleaning or dry cleaning systems, where vertical tensioning is needed for flawless seam stretching and fabric rejuvenation. It is suitable for use on jackets, coats, raincoats, leather garments, dresses and other specialty items made of any fabric or size.

Main Features

Vertical and lateral tensioning ensures perfect seam finishing and rejuvenation of fabrics
Equipped with powerful hot air flow for impeccable finish quality
Automatic positioning of the form via photocell
Computerised cycle controls with programmable memory (up to 10 programs)
Ready for connection to external steam supply
No specialised labour required, improving productivity and reducing touch-ups to minor details only
Available in two versions:
- FORMPLUS/S: PLC system, 10 programmable cycles, 270° rotating form, pneumatic clamps for vents
- FORMPLUS: Electronic control, 10 programmable cycles, available with fixed or 270° rotating form
Optional accessory: GFV steam iron assembly with "All-Steam" iron for final touch-up

*Other voltages available on request.

Specifications are subject to change for manufacturing needs.

Technical Specifications

Electrical supply	400 V / 3+N / 50Hz* or 220 V / 3 / 60 Hz
Fan motor power	1.1 kW
Steam inlet / return	1/2” (inlet and return)
Steam working pressure	5–6 bar (70–87 psi)
Steam consumption	15–20 kg/h
Air inlet / pressure	1/4” / 6–7 bar (87–100 psi)
Air consumption	10 NL/min (0.35 cubic feet/cycle)
Machine dimensions (W x D x H)	1050 × 1260 × 1600–2350 mm
Packing dimensions	970 × 880 × 1760 mm
Net / Gross weight	130 kg / 160 kg
Volume	1.5 m³
