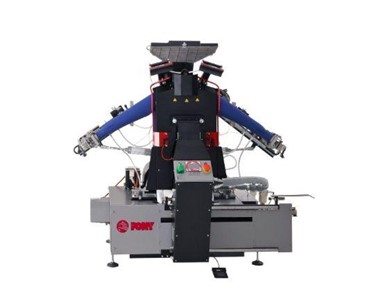

The Angel 3.0 is an advanced shirt finishing machine designed for high-performance and ease of use in professional laundry and garment processing environments.

Patented Hot Air Recovery System reduces steam consumption by up to 20%.

Main Features

Newly designed, contoured Teflon-coated bucks ensure flawless ironing and prevent shine on dark fabrics with PTFE treatment.
Robust and compact structure with adjustable height.
Steam-heated and Teflon-coated shoulder press and sleeve-placket pressing devices for superior pressing results.
Sliding front buck allows for easy and efficient shirt positioning without operator displacement.
Pneumatic, height-adjustable sleeve tensioning device; available in both standard and No Sleeves (NS) versions.
Powerful 3 HP fan, enabling faster shirt drying and improved productivity.
Wide size range accommodates various shirt types, including polo shirts and medical uniforms.
Pinpoint sleeve cuffs and specially contoured clamps for perfect adaptation to shirt armholes.

Innovative System

Patented Hot Air Recovery System (H.A.R.S.) recaptures hot air, reducing steam consumption by up to 20%, shortening the blowing cycle, and ensuring a better working environment.
User-friendly, sequential controls with a modern multicolour touch-screen PLC interface for full customisation, operational diagnostics, and remote access.
Connectivity kit available for internet connection and integration with store management software.

Technical Specifications

Power Supply	400V / 3+N / 50Hz
Vacuum Motor	0.37 kW
Fan Motor	2.20 kW
Total Power Absorbed	2.20 kW
Absorbed Current	5.83 A
Steam Inlet	1/2"
Condensate Return	3 x 1/2"
Steam Working Pressure	4.3–8 bar
Steam Consumption (40–70 pcs/h)	7–13 kg/h
Compressed Air Inlet	1/2"
Air Working Pressure	5 bar
Air Consumption	20–30 Nl/min
Dimensions (WxDxH)	1250 mm
Net Weight	670 kg
Gross Weight (with export carton/pallet)	730 kg
Package Dimensions	2250 x 1240 x 2090 mm
Package Volume	8.00 m³

Available Options

H.A.R.S. (Hot Air Recovery System)
Connectivity kit for internet connection
Short sleeves clamping device
Mirror
