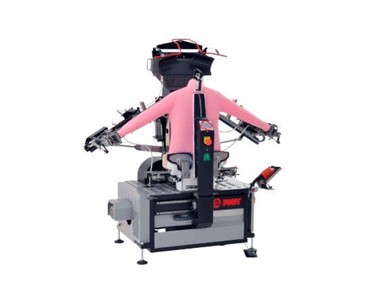

Eagle 2.0 Shirt Finisher
The Eagle 2.0 is engineered for precision finishing of large volumes of shirts and similar garments, incorporating over 30 years of Pony's technological expertise in blowing finishers. It is equipped with advanced electro-pneumatic systems and features that eliminate the need for manual touch-ups, increasing productivity and ensuring top-quality results.
Required Power | 400V/3 + N/50Hz • 230V/3/60Hz (AUX 24VDC) |
Air Inlet | 1/4” |
Air Working Pressure | 7 bar (0.7 MPa) • 100 psi |
Compressed Air Consumption | 40 Nl/cycle • 1.4 cubic feet/cycle |
Power Absorption (Max/Economy) | 24.82 kW / 18.07 kW |
Steam Inlet | 1/2” |
Steam Working Pressure | 5 – 7 bar (0.5 – 0.7 MPa) • 72 – 100 psi |
Steam Consumption | 25 – 35 kg/h |
Fan Motor Power | 1.5 kW |
Vacuum Motor Power | 0.37 kW |
Net Weight | 440 kg max |
Gross Weight (with packaging) | 475 kg |
Overall Dimensions | 198 x 126 x 205 cm |
Volume | 5.1 m³ |
To contact Richard Jay Pty Ltd about Eagle 2.0 Shirt Finisher use Get a quote.
