Tekno Stamap - LAM 2 SERIES 500/600 Manual Benchtop Sheeters

Supplier: Vanrooy Machinery

LAM 2 SERIES 500/600 Manual Benchtop Sheeters

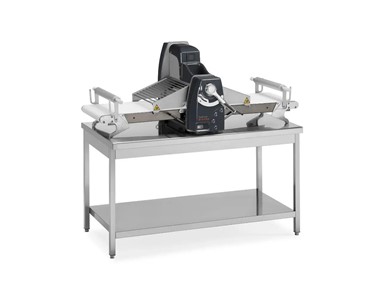

The reversible sheeters mod. LAM 500/600 were specifically designed with the particular consideration for use within small bread-pastry bakeries, hotels and restaurants.

143 Recent Views

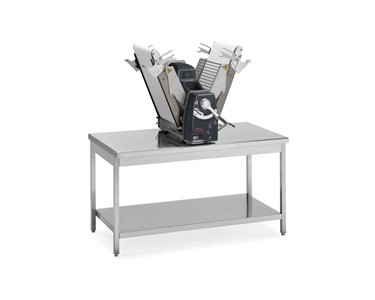

In all the LAM sheeters the conveyor tables can be raised up into a resting position, thereby occupying less space within the working area. This position also facilitates effective cleaning of the unit.

The absence of uncovered and unprotected electrical components, motors, and chords, the detailed conformity of exterior panels, the simplicity of the removable and replaceable dough scrapers, make this unit particularly simple and expedient to clean. A re-designed handle, with a comfortable sliding system, facilitates ease of dough thickness selection with a high degree of accuracy and confidence. All of these features coupled with the general ease of use make this machine unparalled.

Technical features

High quality materials such as stainless steel, aluminium and synthetic components ensure a sanitary unit while maintaining consistency, durability and longevity in accordance with standards. Synthetic material belts coated with polyurethane in accorda nce with standards.
Variable speed ‘‘ Energy saving’’ - 10% energy save
Cylinders opening with digital display

Optional

stainless steel base construction.
cutting attachment.
variable speed of the belt with two fixed speeds or with variator.

Specifications

Technical data	LAM 2 507 B	LAM 2 510 B	LAM 2 610 B
Model	bench	bench	bench
Conveyor belt width	500 mm	500 mm	600 mm
Belt length	750 mm	1000 mm	1000 mm
Cylinders diameter	84mm
Exit belt speed	50cm/s	Optional: variable speed from 50 a 12 cm/sec
Working dimensions	970x1560	970x2060	1070x2060
Stored dimensions	970x900	970x1100	1070x1100
Installed power	0.55 kw	0.55 kw	0.75 kw
Weight	89 kg	93 kg	99 kg
Power supply	standard: 480 / 440 / 415 / 380 / 220 / 208 triphase optional: 220 / 208 / 110 monophase

To contact Vanrooy Machinery about Tekno Stamap LAM 2 SERIES 500/600 Manual Benchtop Sheeters use Get a quote.

Technical features

High quality materials such as stainless steel, aluminium and synthetic components ensure a sanitary unit while maintaining consistency, durability and longevity in accordance with standards. Synthetic material belts coated with polyurethane in accorda nce with standards.
Variable speed ‘‘ Energy saving’’ - 10% energy save
Cylinders opening with digital display

Optional

stainless steel base construction.
cutting attachment.
variable speed of the belt with two fixed speeds or with variator.

Specifications

Technical data	LAM 2 507 B	LAM 2 510 B	LAM 2 610 B
Model	bench	bench	bench
Conveyor belt width	500 mm	500 mm	600 mm
Belt length	750 mm	1000 mm	1000 mm
Cylinders diameter	84mm
Exit belt speed	50cm/s	Optional: variable speed from 50 a 12 cm/sec
Working dimensions	970x1560	970x2060	1070x2060
Stored dimensions	970x900	970x1100	1070x1100
Installed power	0.55 kw	0.55 kw	0.75 kw
Weight	89 kg	93 kg	99 kg
Power supply	standard: 480 / 440 / 415 / 380 / 220 / 208 triphase optional: 220 / 208 / 110 monophase
