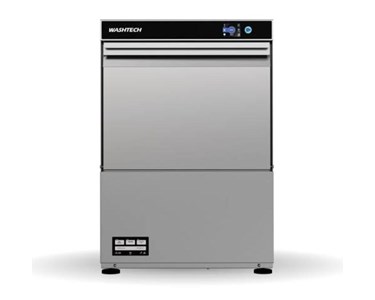

Washtech U Series Commercial Undercounter Dishwashers

Supplier: Bake-Quip

Receive 1-3 days from order

The Washtech U Series provides high-performance, space-saving commercial undercounter dishwashing solutions tailored for cafes, bars, and restaurants. Built with heavy-duty stainless steel, upper and lower wash arms, handcrafted copper rinse boilers, and OneTouch multi-cycle controls, the U Series delivers superior cleaning power with low water consumption (less than $3 liters per cycle).

Model Comparison & Technical Specifications

Feature / Model	GLV	UE	UD
Description	High Performance Compact Dishwasher	Economy Undercounter Dishwasher	High Performance Undercounter Dishwasher
Rack Size	450 mm All-Plastic	500 mm International	500 mm International
Cleaning Capacity	Up to 600 plates / hr	Up to 600 plates / hr	Up to 800 plates / hr
Cycle Times	1, 2, or 3 mins (OneTouch)	2 mins fixed	1, 2, or 3 mins (OneTouch)
Water Consumption	2.6 L / cycle	2.6 L / cycle	2.6 L / cycle
Chamber Clearance	320 mm	300 mm	350 mm
Dimensions (W x D x H)	535 mm x 560 mm x 840 mm	600 mm x 650 mm x 855 mm	600 mm x 640 mm x 850 mm
Bench Depth Fit	600 mm bench depth	700 mm bench depth	650 mm bench depth
Wash Pump Recirculation	Nominal 220 L / min	Nominal 220 L / min	Nominal 220 L / min
Heating Elements	3 kW Rinse / 2.5 kW Wash	3 kW Rinse / 2.5 kW Wash	3 kW Rinse / 2.5 kW Wash
Door & Cabinet Insulation	Full Insulation	Flush Front Design	Full Insulation
Drain Pump	Standard	Optional	Standard
Chemical Injectors	Detergent (Optional) / Rinse Aid (Optional)	Detergent (Optional) / Rinse Aid (Optional)	Detergent & Rinse Injectors Standard
Included Accessories	1 x Dish Rack, 1 x Cup Rack, 1 x Cutlery Container	1 x Dish Rack, 1 x Cup Rack, 2 x Cutlery Containers	2 x Dish Rack, 1 x Cup Rack, 1 x Cutlery Container

Core Operational Features & Design Benefits

OneTouch Multi-Cycle Controls: Simple, ergonomically positioned quick-start push buttons allow operators to select 1, 2, or 3-minute wash cycles instantly based on soil level without increasing water usage per load.
High-Volume Water Recirculation: Recirculates wash water through precision stainless steel upper and lower wash arms with recessed jet sprays at 220 liters per minute for rapid cleanup and reduced rewash rates.
Handcrafted Copper Rinse Boilers: Equipped with heavy-duty copper rinse tanks designed to resist corrosion and deliver long-lasting heating performance in harsh water environments.
Insulated Energy-Saving Design: Full door insulation and magnetic safety switches minimize operational heat loss and noise level while preventing machine operation when open.
FastClean Double Filtration: Contoured L-shaped wash tanks store water beneath easily accessible scrap trays to separate waste effectively and maintain clean wash water.
Flush Front & Easy Serviceability: Compact, flush-front body prevents interference in staff walkways; rear wheels (UD & GLV models) assist with machine removal and floor sanitation.

Primary Applications

Commercial kitchens, cafes, small restaurants, bars, and catering venues requiring high-output, compact undercounter dishwashing.
