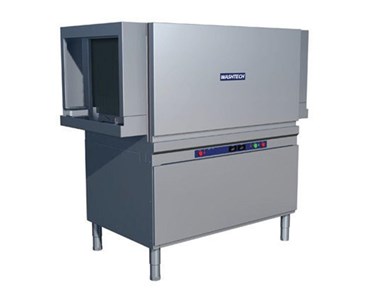

Washtech CD100 2-Stage Conveyor Dishwasher

Supplier: Bake-Quip

Receive 1-3 days from order

The Washtech CD100 is a fully automatic, 2-stage rack conveyor dishwasher engineered for high-volume commercial kitchens, institutions, and catering facilities. Designed to European DIN standards, it features a high-powered wash zone followed by an eco-controlled sanitizing final rinse that only consumes water when racks are present, maximizing operational efficiency while delivering exceptional cleaning throughput.

Technical Specifications

Specification / Parameter	Details
Manufacturer / Brand	Washtech by Moffat
Model	CD100 (C Series)
Machine Type	2-Stage Automatic Rack Conveyor Dishwasher
Standard Capacity / Speed	100 racks per hour (Standard DIN setting)
Optional Throughput	Up to 200 racks per hour (Available on request)
Maximum Water Consumption	300 Liters per hour
Wash Pump Power	1.5 kW
Leg Clearance / Adjustability	200 mm adjustable stainless steel legs
Dimensions ($\mathbf{W \times D \times H}$)	1500 mm x 765 x 1445 mm (Nominal dimensions include vents)
Control System	Simple electromechanical controls for long-term serviceability
Construction	Heavy-duty, full stainless steel construction

Key Features & Commercial Benefits

Rinse Economizer: Reduces water, chemical, and energy costs by activating the final sanitizing rinse only when a rack enters the rinse zone.
Modular Versatility: Compact 2-stage footprint fits into constrained dishwashing areas while seamlessly integrating into custom CAD-designed line layouts.
Powerful Cleaning Performance: Heavy-duty 1.5 kW wash pump drives water through upper and lower stainless steel wash arm cassettes with indented, self-cleaning jets.
FastClean Maintenance: Features full-width, easily removable stainless filter trays, one-piece wash arm cassettes with removable end plugs, and rounded wash tank corners for quick sanitation.
Integrated Safety & Protection: Includes full-width counterbalanced access doors with safety stop switches, conveyor drive safety clutch, automatic tank filling, and run-dry heating element protection.
Hygiene Compliance: Equipped with low-temperature deactivation features to ensure all washware meets statutory hygiene requirements.

Available System Options & Modular Accessories

Higher Throughput Option: Factory speed increase up to 200 racks/hour.
Drive & Handling: 2-speed conveyor drive, bench-stop limit switches, side load tables, and pawl-drive power curves (90oC / 180oC).
Drying & Energy Efficiency: Heat recovery units (pre-heats incoming cold water via exhaust air) and 600 mm / 1200 mm drying modules up to 18 kW
Chamber Adjustments: Overheight opening modification for items taller than 400 mm (up to 800 mm max).
