Richard Jay TTF 200 Towel Folder

Richard Jay - TTF 200 Towel Folder

Supplier: Richard Jay Pty Ltd

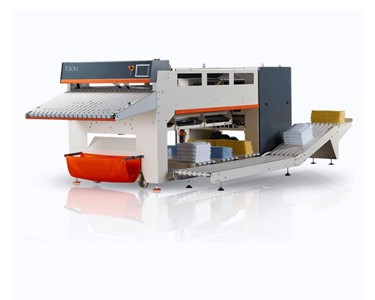

TTF 200 Towel Folder

The TTF 200 Towel Folder is a high-performance machine designed to automate and streamline towel folding, offering superior operational efficiency for laundry environments.

Automates high-speed folding of up to 1250 towels per hour.

Key Features

High-performance towel folding machine with folding capacity between 900 to 1250 towels per hour.
Supports manual, automatic, and continuous operation modes for maximum flexibility.
Counts towels per size, simplifying inventory control and ensuring hygienic handling.
Standard reverse motor and assisting strips ensure quality folds every time.
Three folding lanes (optional fourth lane available) to enhance throughput.
Output conveyor can be positioned in four different directions for seamless workflow integration.
Quick set-up through a standard USB port for program management.
Automatic linen length measurement for optimal folding accuracy.
Flat-pack delivery conveyor efficiently transfers folded towels to the packing station.

Specifications

Nominal capacity	1250 pcs/h
Operational capacity	~900 pcs/h
Minimum towel size	450 x 600 mm
Maximum towel size	1200 x 2000 mm
Number of folding lanes	3 (optional 4)
Folding number	2 x 2
Motor power	1.5 kW
Fuse	3 x 16 A
Cable	4 x 2.5 mm²
Air pressure	6–8 bar
Air consumption	350 l/min
Air connection	10 mm
Installed dimensions (W x D x H)	2070 x 4770 x 1500 mm
Packing dimensions (Towel Folder)	1500 x 3920 x 1520 mm
Packing dimensions (Output conveyor)	600 x 2400 x 800 mm
Net weight	1100 kg
Output conveyor net weight	125 kg
Gross weight	1230 kg
Output conveyor gross weight	150 kg

Options

Fourth folding lane available as an option.

To contact Richard Jay Pty Ltd about Richard Jay TTF 200 Towel Folder use Get a quote.
