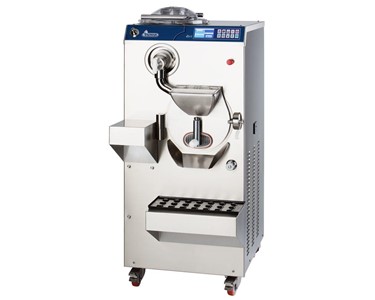

Valmar Batch Freezer - Multy P TTi

Valmar - Batch Freezer - Multy P TTi

Supplier: Italian Gelato Concepts Pty Limited

Batch Freezer - Multy P TTi

Multy P TTi is a single-unit machine made up of two independently and separately operating tanks. The upper one heats and cooks up to 125°C while the lower one cools and freezes.

One Machine, Total Versatility

Specification ?	Multy P 7 TTi	Multy P 12 TTi?
Mix added per cycle	1.5–7.5 kg	2–12.5 kg
Gelato produced per cycle	2–10.5 L	3–17 L
Gelato production per hour	9–45 kg	12–75 kg
Gelato production per hour (volume)	12–60 L	18–100 L
Granita production per cycle	2–7 kg	3–10 kg
Custard production per cycle	3–10 kg	5–14 kg
Number of programs	66	66
Maximum cooking temperature	125°C	125°C
Agitator speed	Variable, 5–70 Hz inverter	Variable, 5–70 Hz inverter
Heating system	Dual resistance heating with PLC control	Triple resistance heating with PLC control
Power supply	400V / 50Hz / 3-phase	400V / 50Hz / 3-phase
Rated power	11 kW	15.3 kW
Water consumption	17 L	21 L
Dimensions (W × D × H)	1501 × 613 × 950 mm	1501 × 613 × 950 mm
Weight	323 kg	344 kg

The innovative series Multy P TTi is born from Valmar’sexperience: multipurpose combined units able to meet themost demanding and complex requirements of the food sector.Thanks to Multy P TTi the operator does not have to modify hisrecipes to operating procedures any more, on the contrary it isthe machine itself that adapts to any professional requirementsto achieve top-level quality standards

The user can choose to operate the machine in Touch mode or in the traditional Type mode. The 4.3” LCDtouchscreen has clear and intuitive icons that enable to manage and monitor each operating phase.

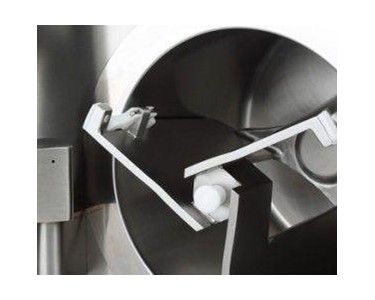

The cylinder is designed and tested to ensure a perfect combination in termsof chilling performance, freezing and micro-crystallization speed as well asoptimized air incorporation.

In DUAL model the same batch freezing cylinder is heated e.g. to temperchocolate thanks to the lower cylinder hot gas heating system (100 °C).

Dual independent tanks for simultaneous heating and freezing
Patented Valmar CombiSystem® for improved overrun and creamier texture
PLC-controlled temperature management with three temperature probes

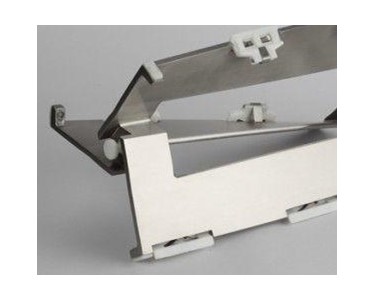

Automatic extraction with variable-speed agitator control
Servo-assisted lids and anti-splash transfer system
Stainless steel construction with removable components for easy cleaning
Six user-programmable cycles alongside dedicated gelato, pastry, granita, sauce, and cooling programs.

To contact Italian Gelato Concepts Pty Limited about Valmar Batch Freezer - Multy P TTi use Get a quote.

Specification ?	Multy P 7 TTi	Multy P 12 TTi?
Mix added per cycle	1.5–7.5 kg	2–12.5 kg
Gelato produced per cycle	2–10.5 L	3–17 L
Gelato production per hour	9–45 kg	12–75 kg
Gelato production per hour (volume)	12–60 L	18–100 L
Granita production per cycle	2–7 kg	3–10 kg
Custard production per cycle	3–10 kg	5–14 kg
Number of programs	66	66
Maximum cooking temperature	125°C	125°C
Agitator speed	Variable, 5–70 Hz inverter	Variable, 5–70 Hz inverter
Heating system	Dual resistance heating with PLC control	Triple resistance heating with PLC control
Power supply	400V / 50Hz / 3-phase	400V / 50Hz / 3-phase
Rated power	11 kW	15.3 kW
Water consumption	17 L	21 L
Dimensions (W × D × H)	1501 × 613 × 950 mm	1501 × 613 × 950 mm
Weight	323 kg	344 kg

The cylinder is designed and tested to ensure a perfect combination in termsof chilling performance, freezing and micro-crystallization speed as well asoptimized air incorporation.

In DUAL model the same batch freezing cylinder is heated e.g. to temperchocolate thanks to the lower cylinder hot gas heating system (100 °C).

Dual independent tanks for simultaneous heating and freezing
Patented Valmar CombiSystem® for improved overrun and creamier texture
PLC-controlled temperature management with three temperature probes
Automatic extraction with variable-speed agitator control
Servo-assisted lids and anti-splash transfer system
Stainless steel construction with removable components for easy cleaning
Six user-programmable cycles alongside dedicated gelato, pastry, granita, sauce, and cooling programs.

Read less...

To contact Italian Gelato Concepts Pty Limited about Valmar Batch Freezer - Multy P TTi use Get a quote.
