Richard Jay ILC1033 Industrial Ironer ...

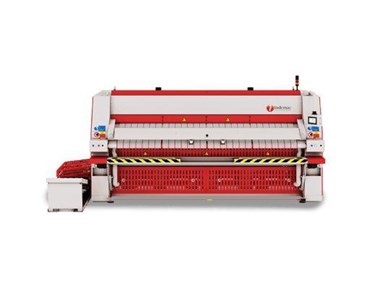

Richard Jay - ILC1033 Industrial Ironer Folder

Supplier: Richard Jay Pty Ltd

ILC1033 Industrial Ironer Folder

The ILC1033 is a high-capacity ironer and folder designed for professional laundry operations, offering efficient linen processing with advanced features.

High-capacity, fully programmable ironer and folder with advanced folding and stacking automation.

Features & Capabilities

Professional ironer with automatic length and crossfolding, plus side stacking capabilities.
Maximum production capacity: 250-290 kg/h.
Working width: 3300 mm; Adjustable ironing speed: 4-18 m/min.
Programmable logic control (PLC) for up to 20 custom programs based on linen dimensions.
Touch-screen control panel for user-friendly operation and alarm advisories.
Personalised folding parameters with selection of stacking side and exit direction.
Multiple folding options: 1-3 length folds, 1-2 crossfolds, and side stacking for both large and small items.
Stacking capacity: up to 10 large or 20 small items per batch.
Adjustable working programs and various feeding, folding, and stacking configurations available as options.
Safety hands bar device and integrated fan self-cleaning system included.

Technical Specifications

Maximum Production	250–290 kg/h
Roll Diameter	1000 mm
Working Width	3300 mm
Ironing Speed	4–18 m/min (adjustable)
Power (Natural Gas)	16.50 kW
Electrical Installation Power	159.10 kW
Compressed Air Needed	6.5 bar
Voltage	400V ~3N + T / 230V ~3 + T
Weight	4460–5110 kg
Machine Dimensions	Length: 4440 mm Depth: 2290 mm Height: 2480 mm
Smokes Extraction	Built-in, 2 x 1000 m³/h
Steam (max 12 bar)	Available option

Optional Features

Vacuum table and automatic feeder (vacuum table included)
Small items stacker with 2 or 4 lines
Double pressure on length folds & dirty/ripped linen reject system
Remote service connectivity & program logic control upgrades
By-pass length folds and alternative power supply configurations
Side stacker “roll off” and selection of stacking direction

Safety & User Experience

Touch-screen control with personalised folding settings
Integrated safety features including alarm advisories
Self-cleaning fans for maintenance ease

To contact Richard Jay Pty Ltd about Richard Jay ILC1033 Industrial Ironer Folder use Get a quote.

Features & Capabilities

Professional ironer with automatic length and crossfolding, plus side stacking capabilities.
Maximum production capacity: 250-290 kg/h.
Working width: 3300 mm; Adjustable ironing speed: 4-18 m/min.
Programmable logic control (PLC) for up to 20 custom programs based on linen dimensions.
Touch-screen control panel for user-friendly operation and alarm advisories.
Personalised folding parameters with selection of stacking side and exit direction.
Multiple folding options: 1-3 length folds, 1-2 crossfolds, and side stacking for both large and small items.
Stacking capacity: up to 10 large or 20 small items per batch.
Adjustable working programs and various feeding, folding, and stacking configurations available as options.
Safety hands bar device and integrated fan self-cleaning system included.

Technical Specifications

Maximum Production	250–290 kg/h
Roll Diameter	1000 mm
Working Width	3300 mm
Ironing Speed	4–18 m/min (adjustable)
Power (Natural Gas)	16.50 kW
Electrical Installation Power	159.10 kW
Compressed Air Needed	6.5 bar
Voltage	400V ~3N + T / 230V ~3 + T
Weight	4460–5110 kg
Machine Dimensions	Length: 4440 mm Depth: 2290 mm Height: 2480 mm
Smokes Extraction	Built-in, 2 x 1000 m³/h
Steam (max 12 bar)	Available option

Optional Features

Vacuum table and automatic feeder (vacuum table included)
Small items stacker with 2 or 4 lines
Double pressure on length folds & dirty/ripped linen reject system
Remote service connectivity & program logic control upgrades
By-pass length folds and alternative power supply configurations
Side stacker “roll off” and selection of stacking direction

Safety & User Experience

Touch-screen control with personalised folding settings
Integrated safety features including alarm advisories
Self-cleaning fans for maintenance ease

Read less...

To contact Richard Jay Pty Ltd about Richard Jay ILC1033 Industrial Ironer Folder use Get a quote.
